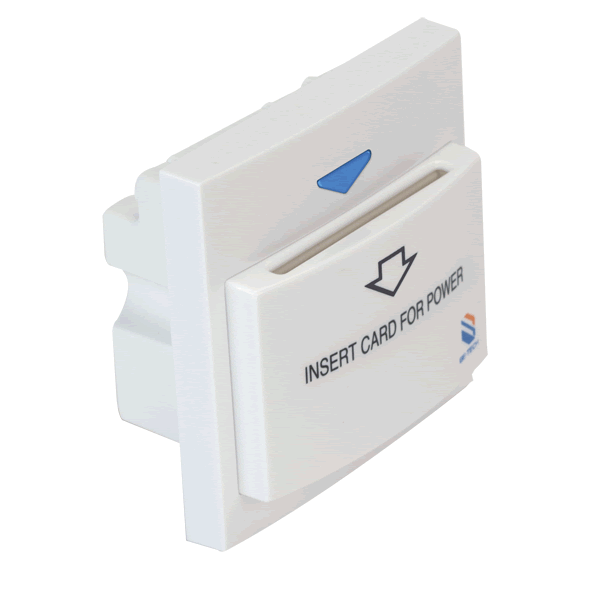

Description TallKee Security Systems offers a full range of in-room hospitality accessories, and energy control unit is included. This is the prefect solution to provide convenience to your guests and saving energy and money when guests are not in room.
Compatible with the same TallKee Security Systems room keycard, the energy control unit is intelligent to differentiate different room guest keycards. So that energy can be saved through limiting the use of air condition and other electrical equipment in those rooms without guests.

Features

1. Disconnect electrical equipment and air conditioning when guests are not in the room to saving energy.
2. Comfortable timer for guests when removing the keycard from the energy control unit.
3. Standard and simple installation.
4. Blue color LED for easy location when entering the room.
5. Own power supply with minimum consumption (30m/Amp in stand-by and 40m/Amp when on)
6. The energy control unit can prevent hotel guests from using certain electrical equipment (Air Conditioning, TV, Phone, etc...) by inserting a name card/credit card but not in the room.
7. The energy control unit only works with hotel keycards in specific room number (*)
(*)only for the Smart RFID Plus

Technical Parameter

	Standard RFID	Smart RFID	Smart RFID Plus
Description	Mifare RFID temporized energy saver	Only operates with hotel specific Mifare RFID keycards	Only operates with hotel keycards Mifare RFID in specific room number
Guest keycard	It prevents hotel guests from using certain electrical equipment (Air Conditioning, TV, Phone, etc...) by inserting a name card/credit card (unrelated to hotel room number specified card) but not in the room.
Voltage	110V~220V Vac. Tolerance 10%	110V~220V Vac. Tolerance 10%	110V~220V Vac. Tolerance 10%
Consumption	30m/Amp in stand-by and 40m/Amp when on	30m/Amp in stand-by and 40m/Amp when on	30m/Amp in stand-by and 40m/Amp when on
Frequency	50-60 Hz	50-60 Hz	50-60 Hz
Output relay	1 reply with time-delay	1 reply with time-delay	1 reply with time-delay
Size mm: inch: (H × W × D)	86 × 86 × 54 3,39 × 3,39 × 2,13	86 × 86 ×54 3,39 × 3,39 ×2,13	86 × 86 × 54 3,39 × 3,39 × 2,13
Weight grams: Ponds	165 grams 0,36 lbs	165 grams 0,36 lbs	165 grams 0,36 lbs
Wall Box	Fireproof material according to norm UL 94 V-0 (Wall box must be ordered in addition if needed)

We have been a high quality saler of hotel locking system in China for more than 20 years. With long year experience since our establishment in 1992, the energy control unit made by TallKee Security Systems is certain to offer you reliable, flexible and valuable hotel solutions.
