Electronic Cabinet Lock

Cyber Digit Cam

    Electronic Cabinet Lock

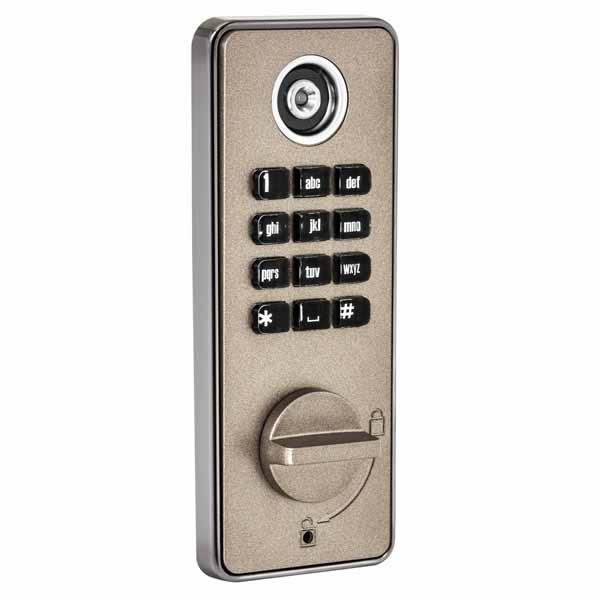

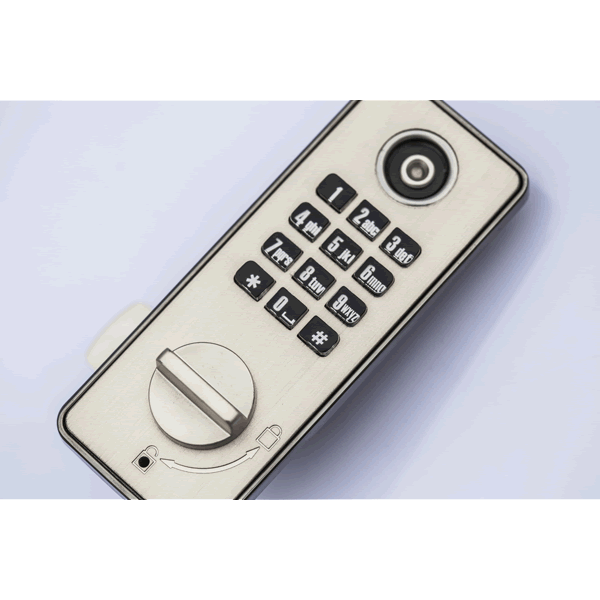

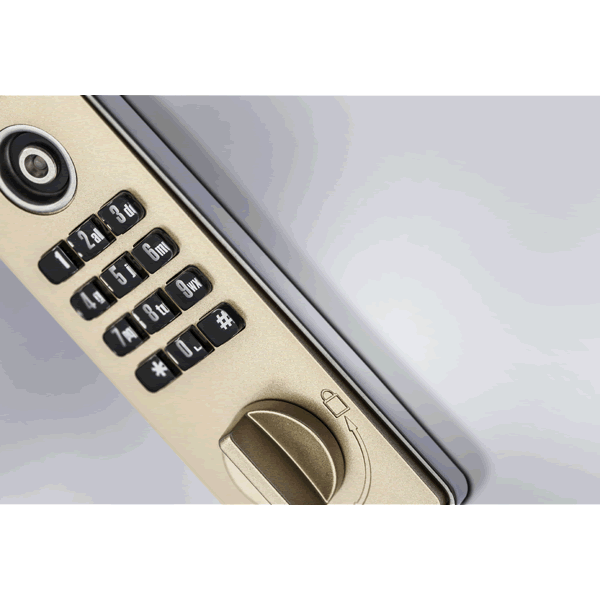

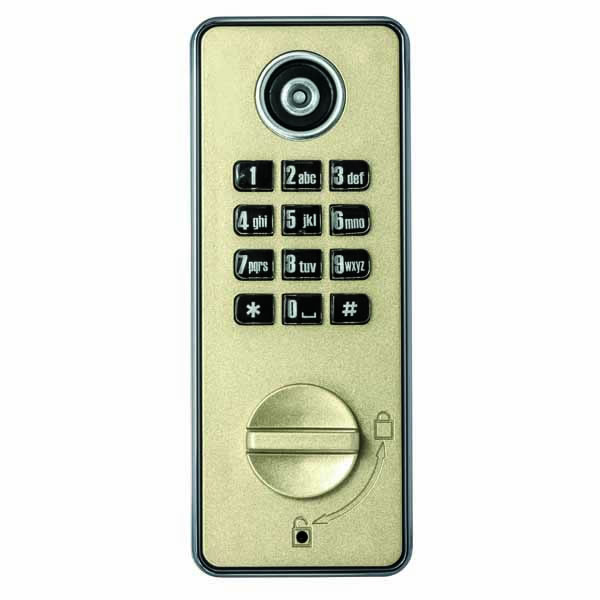

    Description Be-Tech Cyber Digit Cam (C1515D) is a valuable electronic cam lock supplied as standard on a wide range of steel lockers, cabinets and cupboards. The keyless locks are easy to fit. With the flat and fashion design, the electronic cam lock provides high security and comfort for locker and cabinet instead of uncomfortable mechanical keys that require expensive maintenance.

    Certification: CE


    1.Private Function
    This is the most common function used where the same code will be repeatedly used, e.g a pupil in a school or an employee with the same locker in the workplace.
    2.Public Function
    The electronic cam lock operates with a single user code. The guest enters a personal code with 4~9 digit to lock. The same code is entered to open the lock before being erased and ready for the next user. This function is used for short term or multi occupancy applications, e.g a locker in a gym center.

    Technical Parameter

    Power:2 × 1.5 AAA Batteries
    Operations:10,000 Openings
    Low battery: When lock signals ?°Low Battery?± there will be 100 additional openings
    Memory: Non-Volatile memory will be retained when changing batteries
    Battery Override: A battery case can be plugged in external socket
    Material: ABS plastic
    Door thickness: 0.6mm (0.024?±) up to 2.5mm (0.098?±)
    Buttons: 12 individual square buttons
    Functions: Private or Public
    Fitting options: New or retrofit
    Finish: Silver, Gray, Gold, Coffee
    Accessories available: iButton, Override battery case
    Codes & Keys : Cyber Digits Cam has 4 code & key levels
    Owner key, Master key or Master code
    And User code or User key
    Unlocking feature: Manual

    Codes & iButton keys

    The locks are supplied without factory preset codes & iButton keys
    iButton keys have to order separately
    Owner key (Red) : 1 group
    Master key (Blue) : 5 group
    User code : 1 group
    User key(Black) : 1 group (optional)
    Program both iButton keys & codes after lock has been installed

    We have been a high quality supplier of electronic cam lock in China for more than 20 years. With long year experience since our establishment in 1992, the keyless lock made by Be-Tech is certain to offer you reliable, flexible and valuable security solutions.
