Electronic Cabinet Lock

Cyber Digit Slim

    Electronic Cabinet Lock

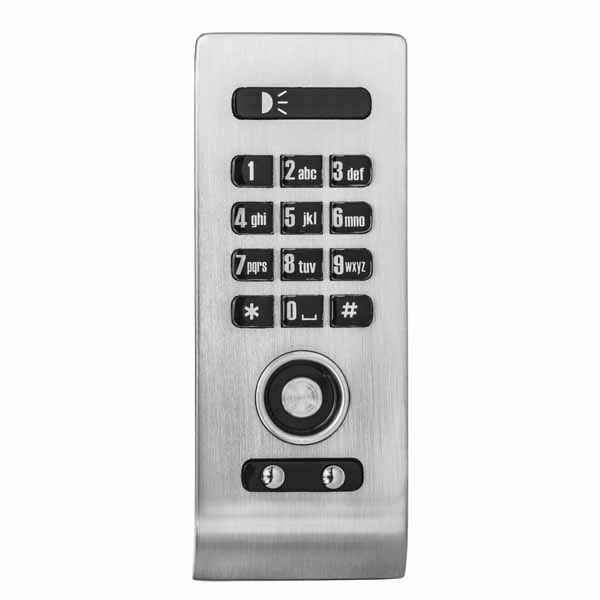

    Description Be-Tech Cyber Digit Slim (C1000D) is the latest product to join the Cyber range of digital lock replacing keys on lockers, cabinet & cupboard.
    The digital lock allows multiple user to be accessed and can be programmed by codes & keys required to open the lock.

    Certification: CE, RoHS


    1.Private Function
    This is the most common function and used where the same code will be repeatedly used, e.g a pupil in a school or an employee with the same locker in the workplace.
    2.Public Function
    The digital lock operates with a single user code. The guest enters a personal code with 4~9 digit to lock the lock. The same code is entered to open the lock before being erased and ready for the next user. This function is used for short term or multi occupancy applications, e.g a locker in a gym center.

    Technical Parameter

    Power:4 × 1.5 AA Batteries
    Operations:15,000 Openings
    Low battery: When lock signals ?°Low Battery?± there will be 100 additional openings
    Memory: Non-Volatile memory will be retained when changing batteries
    Battery Override: A 9v battery can be placed against external contacts
    Material: Zinc Alloy
    Door thickness: 12mm (0.47?±) up to 22mm (0.87?±)
    Buttons: 12 individual square buttons
    Functions: Private or Public
    Fitting options: New or retrofit
    Finish: Silver
    Accessories available:iButton
    Codes & Keys : Cyber Digits Slim has 4 code & key levels
    Owner key, Master key or Master code
    And User code or User key
    Unlocking feature: Automatic motor driving
    Codes & iButton keys
    The locks is supplied without factory preset codes & iButton keys
    iButton keys have to order separately
    Owner key (Red) : 1 group
    Master key (Blue) : 5 group
    Master code : 1 group
    User code : 1 group
    User key : 1 group (optional)
    Program both iButton keys & codes after lock has been installed

    We have been a high quality supplier of digital lock in China for more than 20 years. With long year experience since our establishment in 1992, the Cabinet Locking System made by Be-Tech is certain to offer you reliable, flexible and valuable security solutions.
