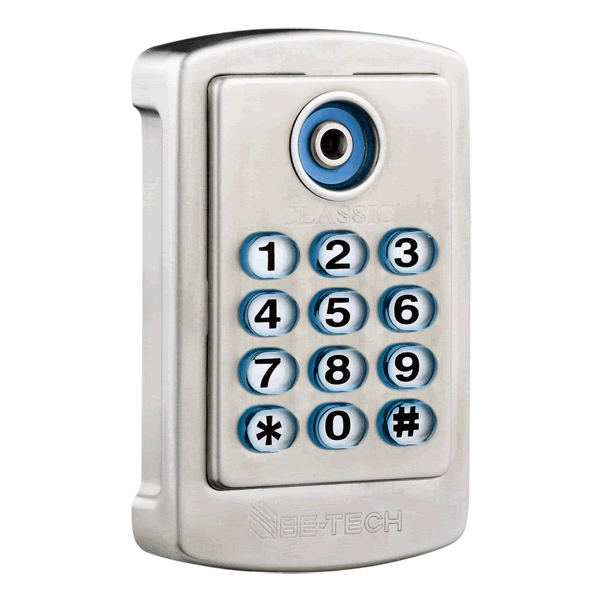

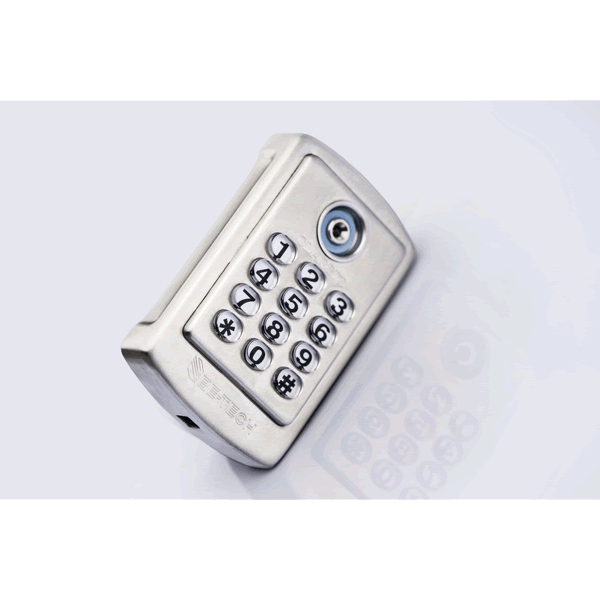

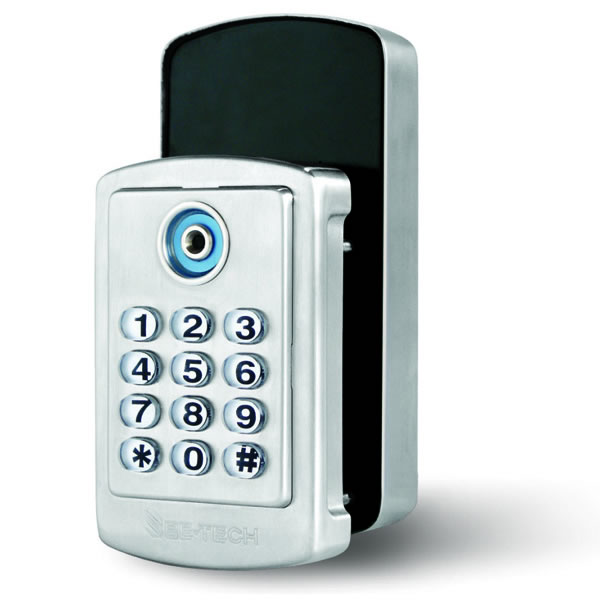

Electronic Cabinet Lock

Cyber Digit Classic

    Electronic Cabinet Lock

    Description All the benefits of the Be-Tech Cyber Digit Classic (3100DL) Keyless Cabinet Lock but tougher and more robust for challenging environment. With additional programming features, stainless steel material, and improved number of operations, the Cyber Digit Classic (3100DL) Keyless Cabinet Lock provides enhanced benefits to facility managers who are looking for easier access control without the need of keys.

    Certification: CE, RoHS


    1. Private Function
    This is the most common function and is used where the same code will be repeatedly used, e.g a pupil in a school or an employee with the same locker in the workplace.
    2. Public Function
    The Keyless Cabinet Lock operates with a single user code. The guest enters a personalcode with 4~9 digit to lock. The same code is entered to open the lock before being erased and ready for the next user. This function is used for short term or multi occupancy applications, e.g a locker in a gym center.

    Technical Parameter

    Power:4 × 1.5 AA Batteries
    Operations:15,000 Openings
    Low battery: When lock signals ?°Low Battery?± there will be 100 additional openings
    Memory: Non-Volatile memory will be retained when changing batteries
    Battery Override: A battery case can be plugged in external round socket
    Material: Stainless Steel
    Door thickness: 12mm (0.47?±) up to 22mm (0.87?±)
    Buttons: 12 individual square buttons
    Functions: Private or Public
    Fitting options: New or retrofit
    Finish: Silver (Brushed Stainless Steel)
    Accessories available:iButton, Override battery case
    Codes & Keys : Cyber Digits Classic has 4 code & key levels
    Owner key, Master key And
    User code or User key
    Unlocking feature: Automatic motor driving

    Codes & iButton keys
    The locks is supplied without factory preset codes & iButton keys
    iButton keys have to order separately
    Owner key (Red) : 1 group
    Master key (Blue) : 3 group
    User code : 1 group
    User key : 1 group (optional)
    Program both iButton keys & codes after lock has been installed

    We have been a high quality supplier of Keyless Cabinet Lock in China for more than 20 years. With long year experience since our establishment in 1992, the electric cabinet locking system made by Be-Tech is certain to offer you reliable, flexible and valuable security solutions.
