Electronic Residential Lock

Digital Lever Set - 13K

    Electronic Residential Lock

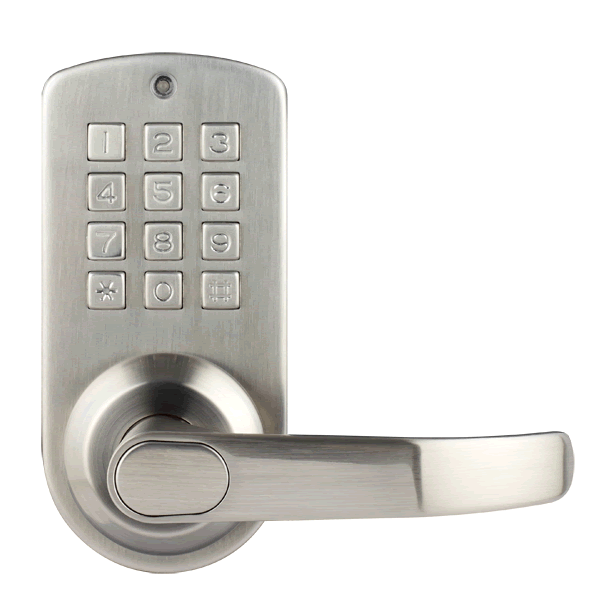

    Description 1. Digital Lever Set Lock
    2. Stainless Keypad & Mechanical Key
    3. 60/70mm Adjustable Backset Tubular Latch
    4. Silver

    Features

    1. Various access
    Be-Tech 1313K digital lever set lock has two access solutions, PIN code or Mechanical key for convenient use.
    2. Stainless keypad
    ADA complaint keypad made by stainless steel, reliable and long lasting.
    3. Operation status notification
    Every operation will be indicated by the LED indicator through different colors and blinking.
    4. Tubular latch locking mechanism
    International standard jimmy proofing tubular latch.
    5. Automatic locking
    The digital lever set lock will lock itself automatically after a few seconds.
    (Manual operation is also available)
    6. Missing key invalidation
    Once you lose your key, re-register the rest keys and the lost key will lose validation.
    7. Anti-panic egress mortise
    For convenience and in case of emergency, the deadbolt and latch of mortise can be automatically retracted by inside handle.
    8. Alarm (Incorrect PIN code attempt)
    Alarm will on and last 60 seconds if anyone attempts to open the lock by 6 times incorrect PIN code.
    9. Low battery warning signal
    Batteries should be replaced once a continuous "beep" sound during door access is heard.
    10. Fake PIN code
    You can make an instant PIN code for security.
    11. Scramble code
    You can use meaningless number prior to the right code when there is a chance of exposing it to others.
    12.Mechanical key override
    In emergency, the digital lever set lock can be also unlocked by a mechanical key.

    Technical Parameter

    Model: 1313K
    User Access code: Master Access Code : 1 group
    User Access Code: 1 group
    Capacity: 1 to 9 digit number combination
    Type: Tubular Lock
    Mechanical Key: 4 Dual pin bump proof, 3pcs
    Material: Stainless steel, Zinc alloy
    Size (W x H x D): Front body: 63mm × 136mm × 22mm
    138mm × 136mm × 80mm (With Handle)

    Back body: 63mm × 136mm × 21mm
    138mm × 136mm × 63mm (With Handle)
    Lockset: Tubular latch (60/70mm Backset)
    Door Thickness: Applicable 35mm to 50mm
    Power: DC 6V (AA Alkaline battery, 4pcs)
    Battery Life: Approximately 18 months
    (Average 10 times per day)

    We have been a high quality saler of digital lever set lock in China for more than 20 years. With long year experience since our establishment in 1992, the digital lever set lock made by Be-Tech is certain to offer you reliable, flexible and valuable security solutions.
