Electronic Residential Lock

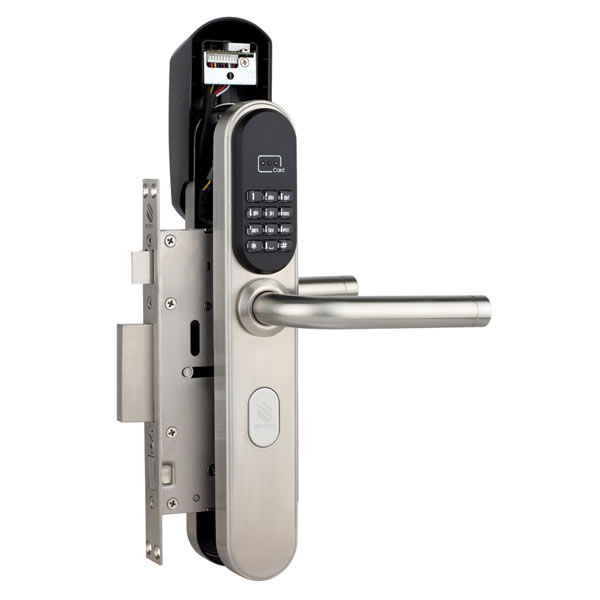

Digital Mortise Lock - G3MK

    Electronic Residential Lock



    Description 1. Digital Mortise Lock, Digital Door Lock
    2. RF Card & Keypad
    3. 60mm Backset Mortise
    4. Silver

    Features

    1. Various access
    Be-Tech G356MK digital mortise lock has two access solutions, RF Card key or PIN code for convenient use.
    2. Illuminated keypad
    ADA complaint keypad made by plastic, reliable and long lasting.
    3. Operation status notification
    Every operation will be indicated by the LED indicator through different colors and blinking.
    4. Automatic locking
    The digital mortise lock will lock itself automatically after a few seconds.
    (Manual operation is also available)
    5. Missing key invalidation
    Once you miss your key, it will lose validation as long as you re-register the rest keys.
    6. Anti-panic exit system
    You are allowed to open the door by turning its handle from inside in emergency.
    7. Alarm (Incorrect PIN code attempt)
    Alarm will on and last 60 seconds if anyone attempts to open the lock by 4 times PIN error.
    8. Low battery warning signal
    You have to replace batteries as soon as you hear a continuous "beep" sound during door access.
    9. Scramble code
    You can use meaningless number prior to the right code when there is a chance of exposing it to others.
    10. Mechanical key override
    In emergency, the digital mortise lock can be also unlocked by a mechanical key.

    Technical Parameter

    Model: G356MK
    Front (Front Body) 50(W) × 300(H) × 29(D) (76.5 with door handle)mm,Stainless Steel
    Back (Back Body) 50(W) × 355(H) × 47(D) (76.5 with door handle)mm,Stainless Steel
    Temperature: Workable -20°C to 60°C
    Humidity: Workable 20% to 95%
    Door Thickness: Applicable Range 40mm to 50mm
    Handle: Stainless Steel
    Card Keys: Up to 20 keys(1 Master key & 19 User keys)
    User Codes 4 to 9 Digits (0000~000000000)
    10 Groups
    Battery 4 × 1.5V AA alkaline batteries (Operating voltage: 4.5V to 6V)
    Last up to 12 months (10 times used a day)
    Lock case Stainless Steel

    We have been a high quality saler of digital mortise lock in China for more than 20 years. With long year experience since our establishment in 1992, the digital door lock made by Be-Tech is certain to offer you reliable, flexible and valuable security solutions.

    Download:
