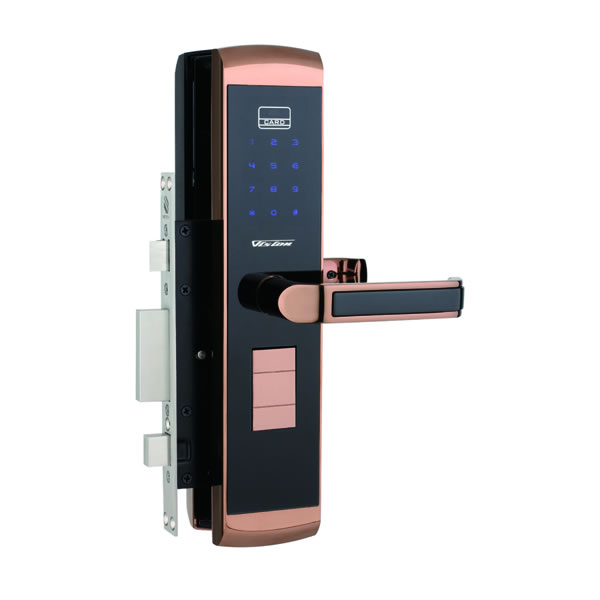

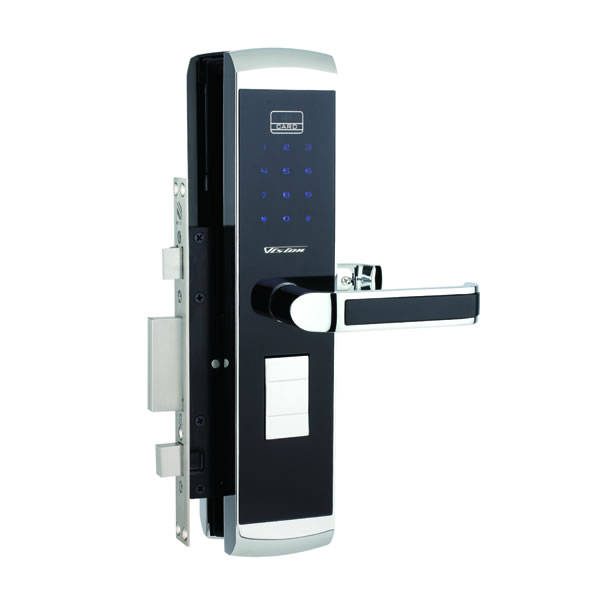

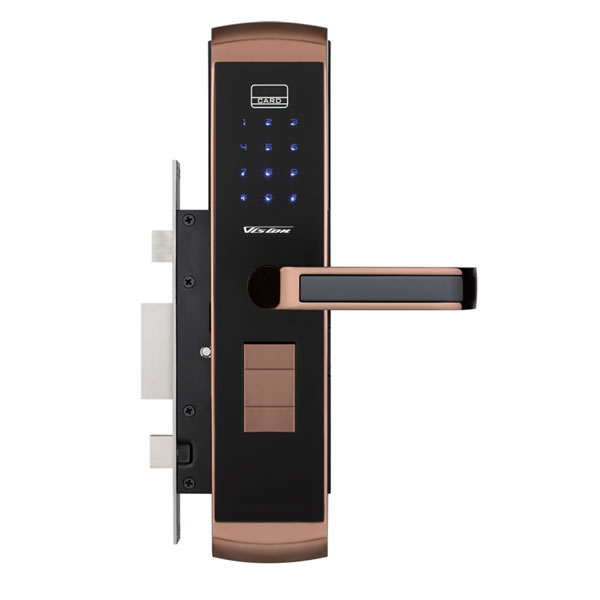

Electronic Residential Lock

Touchpad Mortise - V3MT

    Electronic Residential Lock



    Description 1. Digital Mortise Lock, Touchpad Mortise Lockset
    2. RF Card & Touchpad
    3. 60mm Backset Mortise
    4. Coffee Gold

    Features

    1. Various access
    Be-Tech V3A8MT touchpad mortise lockset has two access solutions, RF Card key or PIN code for your convenience.
    2. Invisible keypad
    Keypad number can be seen only when you touch the screen with your palm.
    3. Fake PIN code
    You can make an instant PIN code for security.
    4. Operation status notification
    Whenever any operation is made, the LED indicator informs you what is happening through different colors and blinking.
    5. Automatic locking
    The door will be locked automatically after opening for a few seconds.
    (Manual operation is also available)
    6. Missing key invalidation
    Once you lose your key, it will be validated as long as you re-register the rest of your keys.
    7. Anti-panic exit system
    For convenience and in case of emergency, it allows you to open the door by simply turning its handle from inside.
    8. Alarm (Incorrect PIN code attempt)
    Alarm will on and last 60 seconds if anyone attempts to open the lock by 4 times incorrect PIN code.
    9. Low battery warning signal
    A continuous "beep" sound during door access will alert you to replace batteries.
    10. Scramble code
    You can meaningless number prior to the right code when there is chance of exposing it to others.
    11. Mechanical key override
    For emergency, it can also be unlocked with a mechanical key.

    Technical Parameter

    Model: V3A8MT
    Front (Front Body): 73(W) × 333(H) × 21(D)(75 with door handle)mm, Zinc Alloy
    Back (Back Body): 79(W)× 333(H) × 25(D)(67 with door handle)mm, Zinc Alloy
    Temperature: Workable -20°C to 60°C
    Humidity: Workable 20% to 95%
    Door Thickness: Applicable Range 40mm to 50mm
    Handle: Zinc Alloy
    Card Keys: Up to 40 keys(1 Master key & 39 User keys)
    User Codes: 4 to 9 Digits(0000~000000000)
    10 Groups
    Battery: 4 × 1.5V AA alkaline batteries(Operating voltage: 4.2V to 6V)
    Last up to 12 months (10 times used a day)
    Lock case: Stainless Steel

    We have been a high quality saler of touchpad mortise lockset in China for more than 20 years. With long year experience since our establishment in 1992, the touchpad mortise lockset made by Be-Tech is certain to offer you reliable, flexible and valuable security solutions.
