Electronic Residential Lock

Digital Lever Set - 33DL

    Electronic Residential Lock

    Description 1. Digital Lever Set Lock, Lever Lock
    2. i-Button Key & Illuminated Keypad
    3. 60/70mm Adjustable Backset Tubular Latch
    4. Silver


    1. Various access
    Be-Tech 3313DL lever lock has two access solutions, i-Button key or Mechanical key.

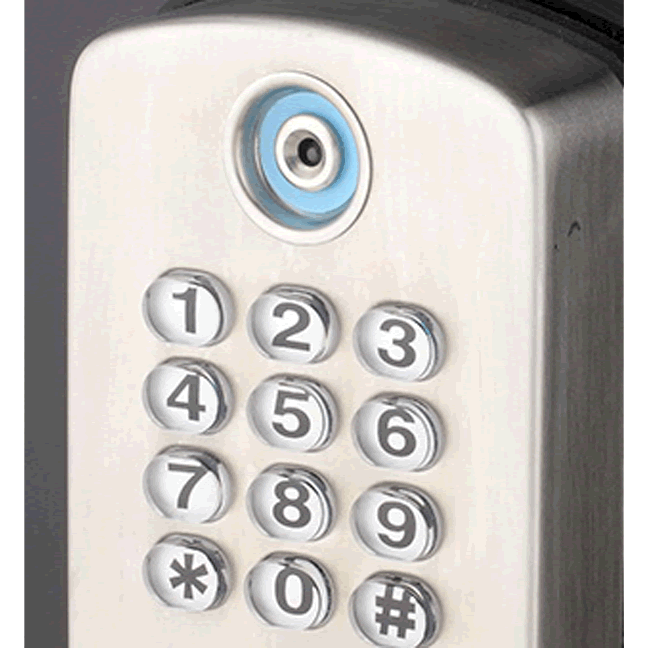

    2. Illuminated keypad
    The ADA keypad made by stainless steel is reliable and long lasting.
    3. Operation status notification
    The LED indicator will show you every opreation on the lock by different colors and blinking.
    4. Tubular latch locking mechanism
    Jimmy proofing tubular latch with international standard.
    5. Automatic locking
    The digital lever lock will return locked as soon as it has kept unlocked for a few seconds. (Manual operation is also available)
    6. Missing key invalidation
    Once your key is lost, re-register the rest keys and the lost one itself will lose validation.
    7. Alarm (Incorrect PIN code attempt)
    Alarm will on and last 60 seconds after 4 times incorrect PIN code.
    8. Low battery warning signal
    Batteries have to be replaced if you hear a continuous "beep" sound during door access.
    9. Scramble code
    You can creat an unrelated number prior to the right code when there is a chance of exposing it to others.
    10. Mechanical key override
    You can unlock the digital tubular latch lock in emergency with a mechanical key.

    Technical Parameter

    Model: 3313DL
    User Access code: Master Access Code : 1 group
    User Access Code: 1 group
    Capacity: 1 to 9 digit number combination
    i-Button: MAXIM DALLAS DS1990A
    Capacity: 200
    Type: Tubular Lock
    Mechanical Key: 4 Dual pin bump proof, 3pcs
    Material: Stainless steel, Zinc alloy
    Size (W x H x D): Front body: 63mm × 136mm × 22mm
    138mm × 136mm × 80mm (With Handle)
    Back body: 63mm × 136mm × 21mm
    138mm × 136mm × 63mm (With Handle)
    Lockset: Tubular latch (60/70mm Backset)
    Door Thickness: Applicable 35mm to 50mm
    Power: DC 6V (AA Alkaline battery, 4pcs)
    Battery Life: Approximately 18 months
    (Average 10 times per day)

    We have been a high quality saler of digital lever lock in China for more than 20 years. With long year experience since our establishment in 1992, the digital lever lock made by Be-Tech is certain to offer you reliable, flexible and valuable security solutions.
