Electronic Residential Lock

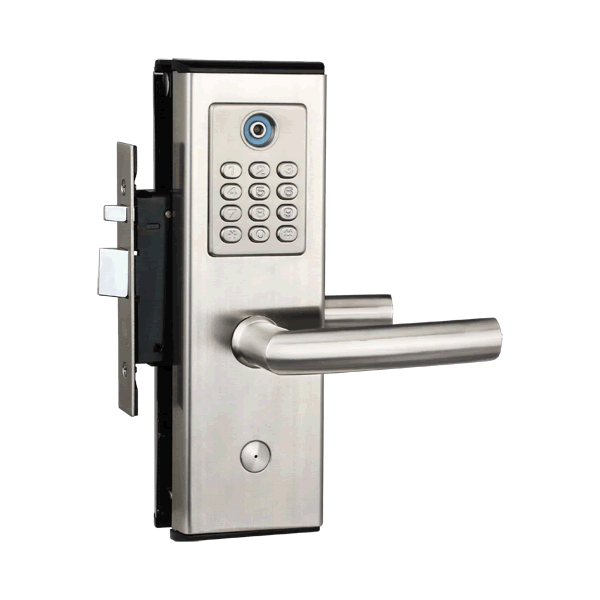

Digital Mortise Lock - 30D

    Electronic Residential Lock

    Description 1. Digital Mortise Lock, Keypad Digital Door Lock
    2. i-Button Key & Stainless Keypad
    3. 60mm Backset Mortise
    4. Silver


    1. Various access
    Be-Tech 3036D keypad digital door lock has two access solutions, i-Button key or Mechanical key providing convenient use.

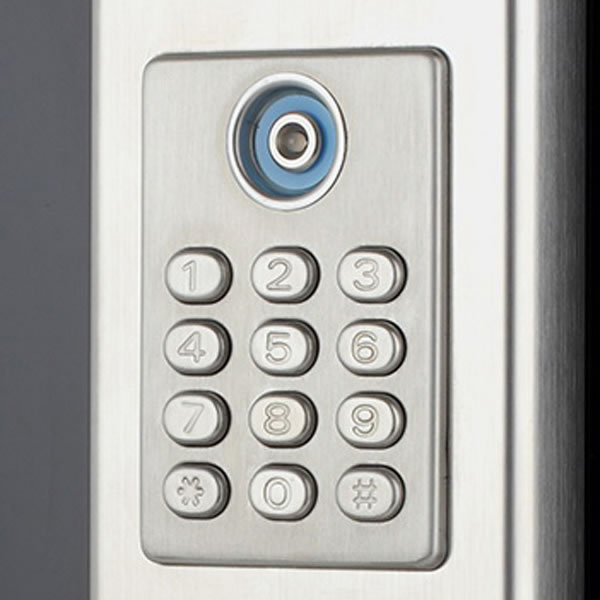

    2. Stainless keypad
    The digital door lock introduces ADA complaint keypad made by stainless steel, reliable and long lasting.
    3. Operation status notification
    The LED indicator informs you whatever happens through any operation by displaying signals with different colors.
    4. Automatic locking
    Door lock will be re-locked automatically after it’s been opened for a few seconds.
    (Manual operation is also available)
    5. Missing key invalidation
    The lost key will lose its validation as long as you re-register the rest keys.
    6. Anti-panic exit system
    You can open the door easily by turning its handle from inside, for convenience in emergency.
    7. Alarm (Incorrect PIN code attempt)
    Alarm will on and last 60 seconds if anyone attempts to open the lock by key but has input incorrect PIN codes for 4 times .
    8. Low battery warning signal
    Once there is a continuous "beep" sound during door access, it means you should replace batteries.
    9. Scramble code
    You can input a meaningless number prior to the right code when there is chance of exposing it to others.
    10. Mechanical key override
    In emergency, you can open the keypad digital door lock by using a mechanical key.

    Technical Parameter

    Model: 3036D
    User Access code: Master Access Code: 1 group
    User Access Code: 1 group
    Capacity: 1 to 9 digit number combination

    i-Button: MAXIM DALLAS DS1990A
    Capacity: 32

    Type: Mortise Lock
    Mechanical Key: 4 Dual pin bump proof, 3pcs
    Material: Stainless steel
    Size (W x H x D): Front body: 80mm × 243mm × 23mm
    : 155mm × 243mm × 80mm (With Handle)
    Back body: 80mm × 243mm × 20mm
    : 155mm × 243mm × 80mm (With Handle)
    Lockset: Mortise (60mm Backset)
    Door Thickness: Applicable 35mm to 50mm
    Power: DC 6V (AA Alkaline battery, 4pcs)
    Battery Life: Approximately 18 months
    (Average 10 times per day)

    We have been a high quality supplier of keypad digital door lock in China for more than 20 years. With long year experience since our establishment in 1992, the keepad digital door lock made by Be-Tech is certain to offer you reliable, flexible and valuable security solutions.
